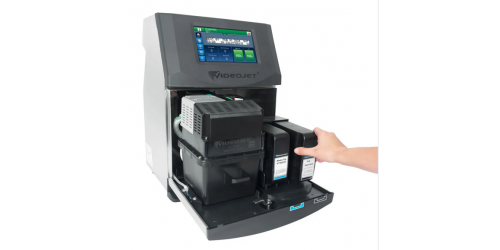

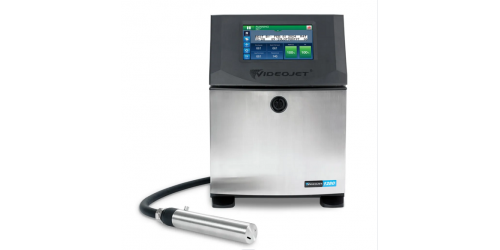

Easily achieve the performance advantages of small character inkjet printers and the operational efficiency of operatorsVideojet has redefined ease of operation with the Videojet 1240/1280 small character inkjet printers. From intuitive interfaces to intelligent designs, the 1240/1280 industrial inkjet printers offer a wide range of functions that are easy for all operators to use. The 1240 / 1280 industrial inkjet printer features an 8" flat-panel SIMPLICiTY™ interface, significantly reducing human-machine interaction and eliminating potential operational errors. The Videojet SmartCell™ service module can be replaced quickly and easily, ensuring optimized production line efficiency and avoiding additional downtime. The Videojet Smart Cartridge™ system is free from dirt and mess, waste and errors. It can discharge all the ink/solvent in the ink cartridge/solvent box, and provides additional leak-proof protection during transportation and handling. Optional VideojetConnect™ Remote Service enables your team to instantly access the extensive CIJ expert network. You can receive immediate assistance by directly communicating with WistiaJet technicians online.
Specifications
| Specifications | 1240 | 1280 |
| Printhead | 1 | 1 |
| Ink Type | Dye-based | Dye-based |
| Max. Print Lines Per Head | 5 | 5 |
| Maximum Line Speed (1) | 162 m/min (533 ft/min) | 278 m/min (914 ft/min) |
| Ingress Protection | IP55 | IP55 |
| Umbilical Length | 2 m (6.56 ft) | 2 m (6.56 ft), optional 3 m (9.84 ft) |
| Message Storage Capacity | 250+ Complex Messages | 250+ Complex Messages |
| Smart Cartridge™ | Included | Included |
| SmartCell™ | Included | Included |
| Communications | Ethernet & RS232 Serial (RS232 Interface Kit Required) | Ethernet & RS232 Serial (RS232 Interface Kit Required) |
| 1D & 2D Barcodes | Included | Included |
| I/O Ports & Controls | Product Detect Input, Encoder Input, Beacon Output, Relay Output, USB 2.0 (x2) | Product Detect Input, Encoder Input, Beacon Output, Relay Output, USB 2.0 (x2) |
| Display (User Interface) | SIMPLICiTY™ 8” Color Touchscreen | SIMPLICiTY™ 8” Color Touchscreen |
| Workflow Modules | Scan2Print | Extended Speed Workflow Module, Scan2Print |
| Positive Air / Air Dry Kit | Optional | Optional |
(1) Based on single line printing with 10 characters per inch
Advantage of normal operating time Adopting the proven and innovative technologies provided by the traditional models of Veridata · Modularized wear parts are easy to replace and reliable, which can reduce downtime. · It can be connected to the optional VideojetConnect™ Remote Service for direct communication with our technical experts. Simple and easy to use The 8-inch touch screen display is easy to operate and does not require extensive training for the operators. The built-in "how-to" video can significantly reduce the need for having an operation manual. · The Videojet SmartCell™ design enables simple and user-executed preventive maintenance. Quality Assurance of Coding The flat touch screen makes it easier for operators to understand the interface, thereby reducing printing errors. The Videojet SIMPLICIITY™ user interface significantly reduces the operator's intervention in the inkjet printer, and the intuitive 8" touch screen display eliminates potential operational errors. The user-defined information rules enable the automatic encoding of content, eliminating the need for operator intervention. Designed specifically to enhance production efficiency · Videojet Smart Cartridge™ eliminates dirtiness, waste and errors Reduce waste and rework by following the step-by-step instructions in the user-friendly interface of the operation. · Workflow module expansion function · Automation of information rules reduces the need for operator intervention
